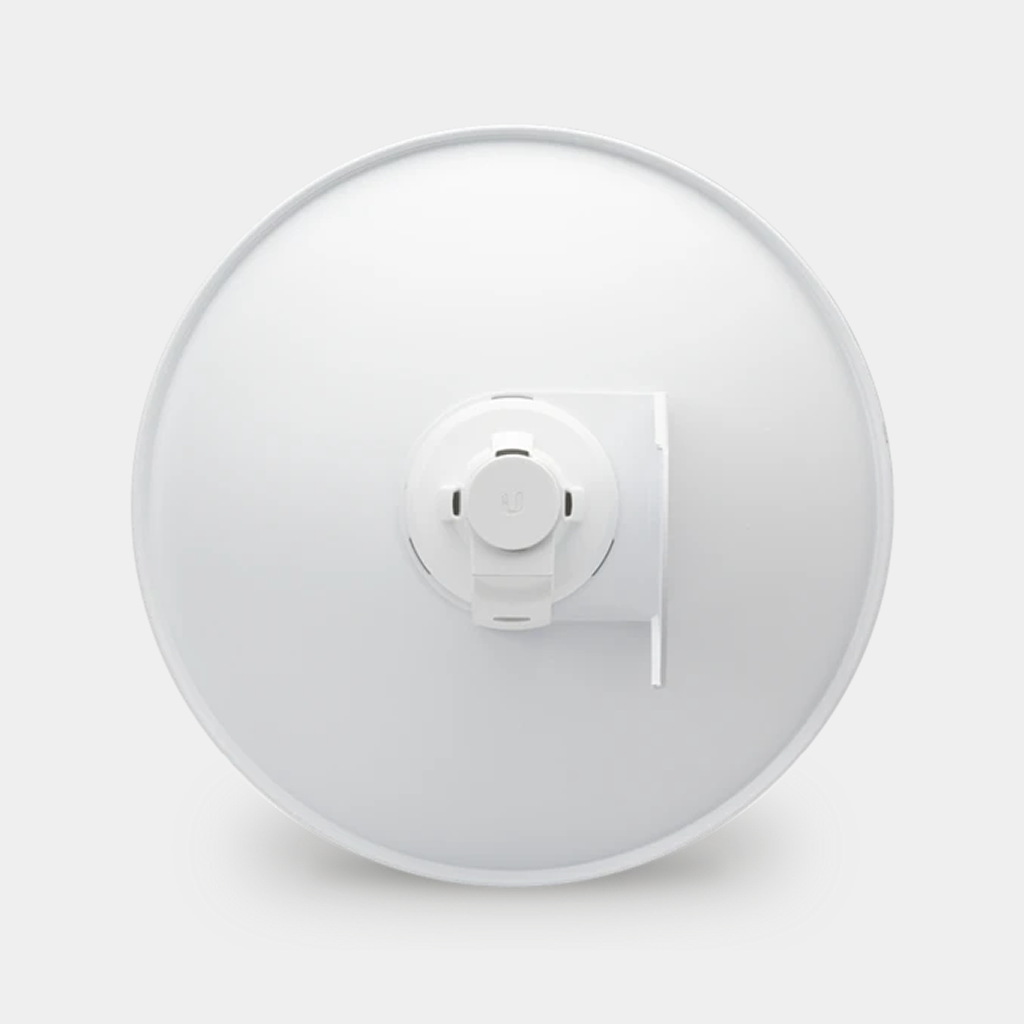

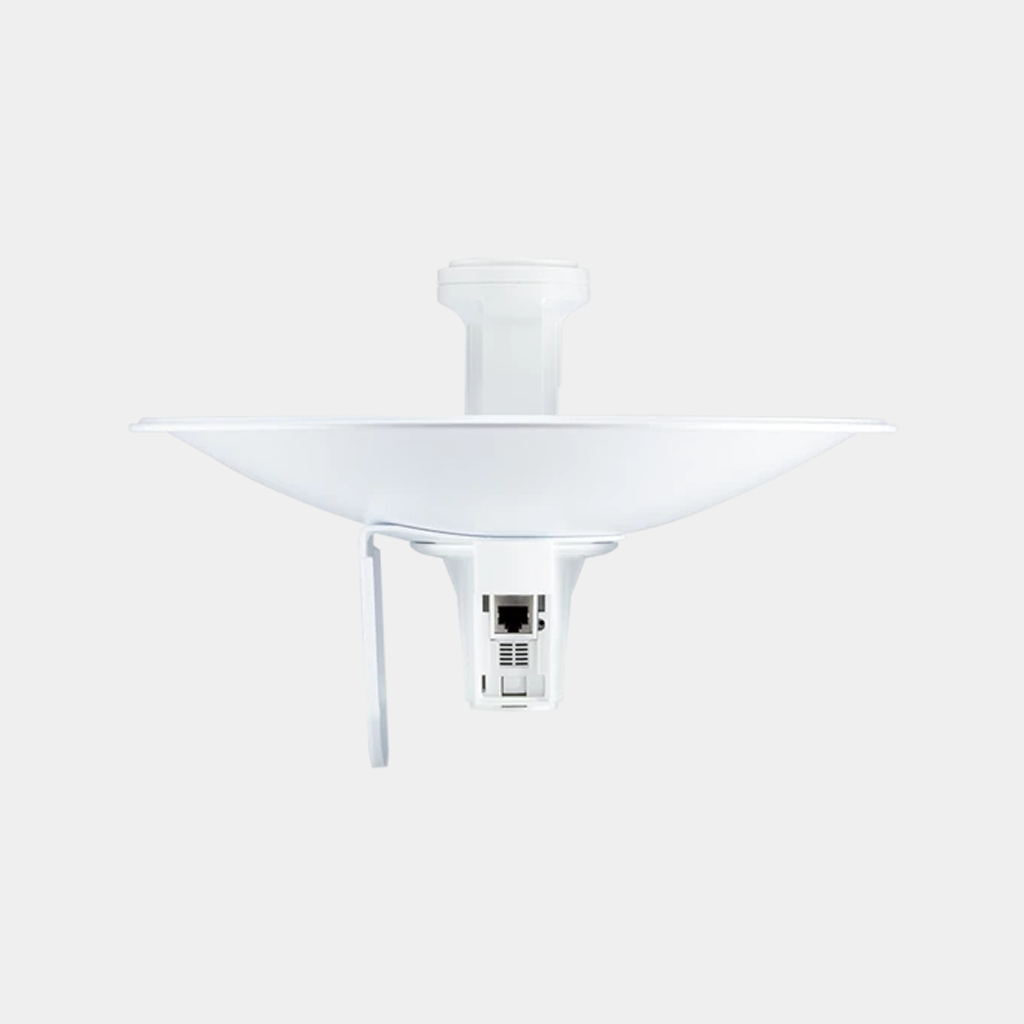

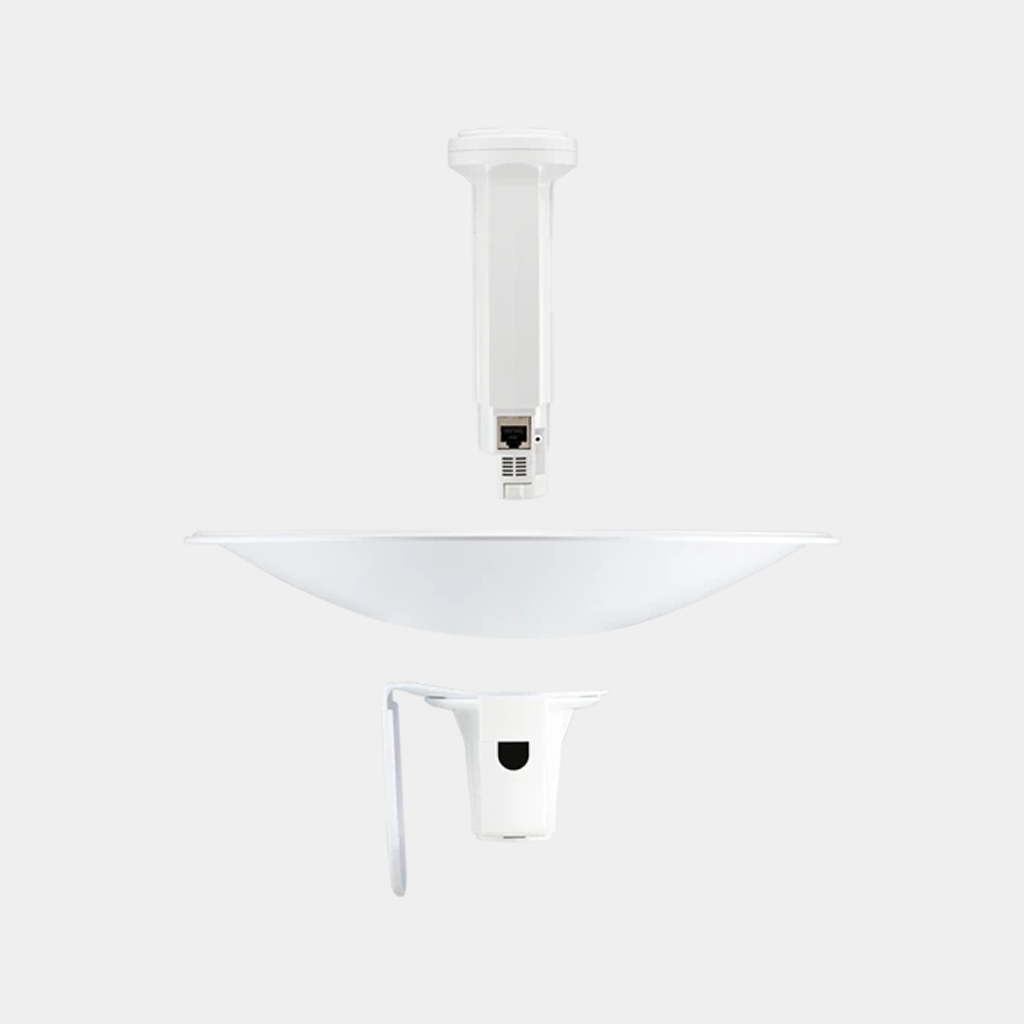

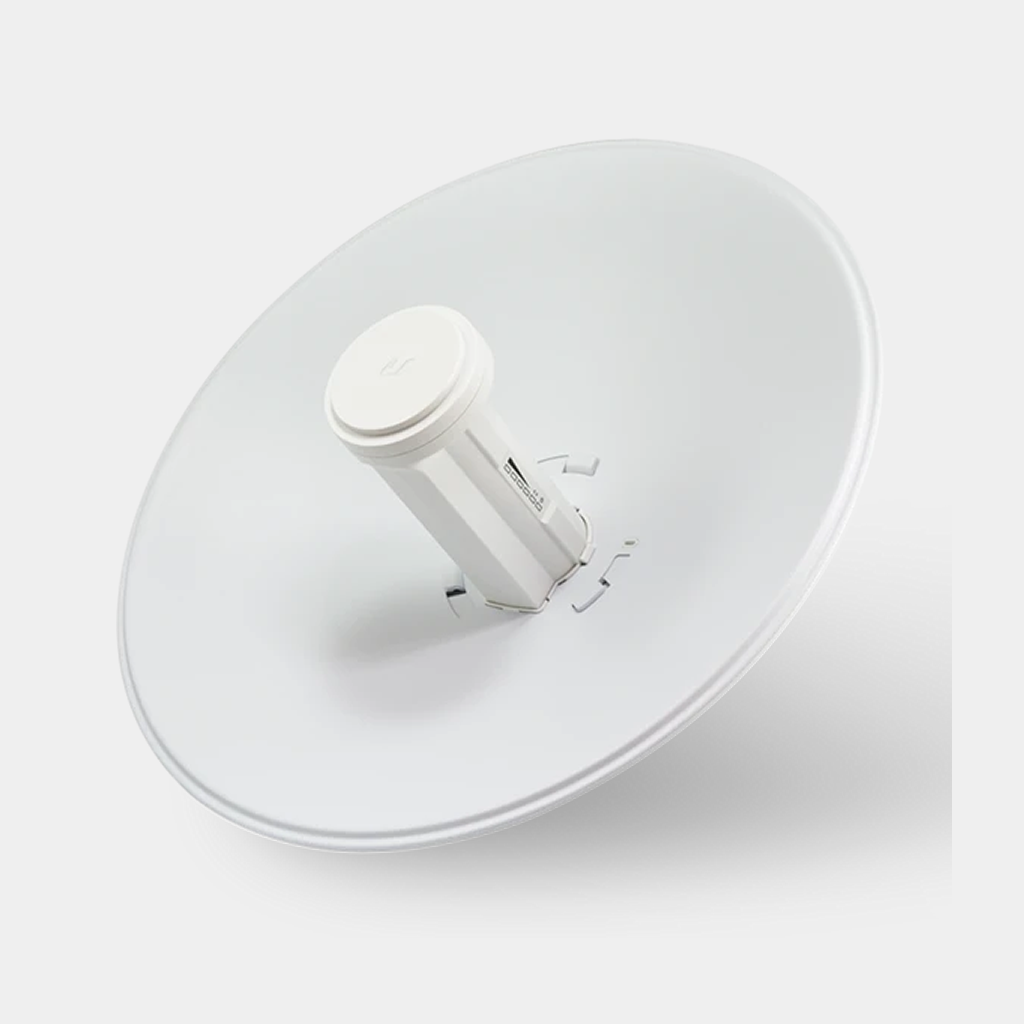

Incorporating a dish reflector design with advanced technology, the PowerBeam™ is Ubiquiti airMAX® CPE for customer locations.
SPECIFICATION:
Dimensions 325 x 325 x 256 mm
(12.8 x 12.8 x 10.1")
Weight (Mount Included) 1.203 kg
(2.65 lb)
Gain 22 dBi
Networking Interface (1) 10/100 Ethernet Port
Enclosure Outdoor UV Stabilized Plastic
Max. Power Consumption 6W
Max. TX Power 26 dBm
Power Supply 24V, 0.5A PoE Adapter (Included)
Power Method Passive PoE (Pairs 4, 5+; 7, 8 Return)
Wind Survivability 200 km/h
(125 mph)
Wind Loading 200.2 N @ 200 km/h
(45 lbf @ 125 mph)
Mounting Pole Mounting Kit Included
Salt Fog Test IEC 68-2-11 (ASTM B117),
Equivalent: MIL-STD-810 G Method 509.5
Vibration Test IEC 68-2-6
Temperature Shock Test IEC 68-2-14
UV Test IEC 68-2-5 at 40° C (104° F)
Equivalent: ETS 300 019-1-4
Wind-Driven Rain Test ETS 300 019-1-4
Equivalent: MIL-STD-810 G Method 506.5
Operating Temperature -40 to 70° C
(-40 to 158° F)
Operating Humidity 5 to 95% Noncondensing
