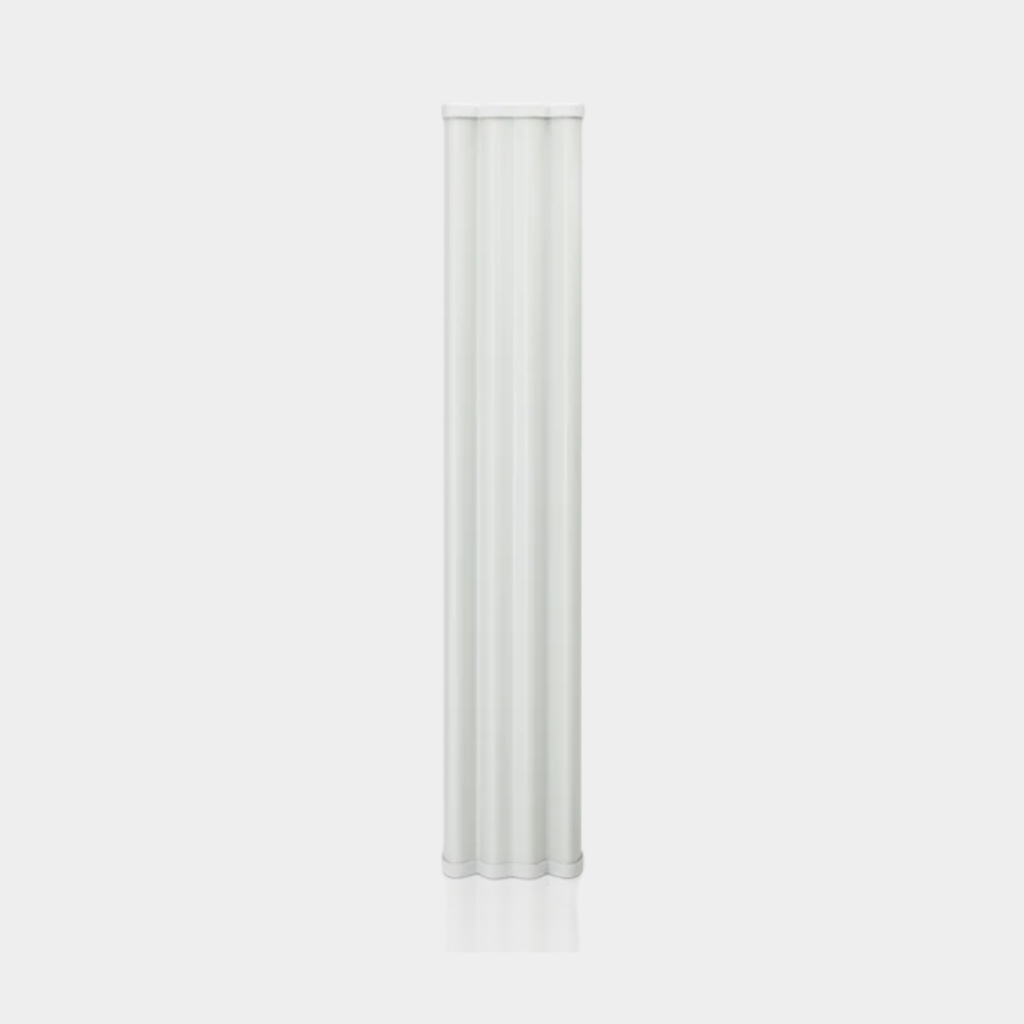

airMAX® 2x2 BaseStation Sector Antenna Pair the airMAX® Sector Antenna with a Rocket™M BaseStation for sector coverage in Point-to-MultiPoint (PtMP) networks.
SPECIFICATION:
Dimensions (mm) 700 x 135 x 70 Weight 5.9 kg Frequency Range 5.15 - 5.85 GHz Gain 19.4 - 20.3 dBi HPOL Beamwidth 91° (6 dB) VPOL Beamwidth 85° (6 dB) Electrical Beamwidth 4° Electrical Downtilt 2° Max. VSWR 1.5:1 Wind Survivability 125 mph Wind Loading 26 lbf @ 100 mph Polarization Dual-Linear Cross-pol Isolation 28 dB Min. ETSI Specification EN 302 326 DN2 Mounting Universal Pole Mount, RocketM Bracket, and Weatherproof RF Jumpers Included
