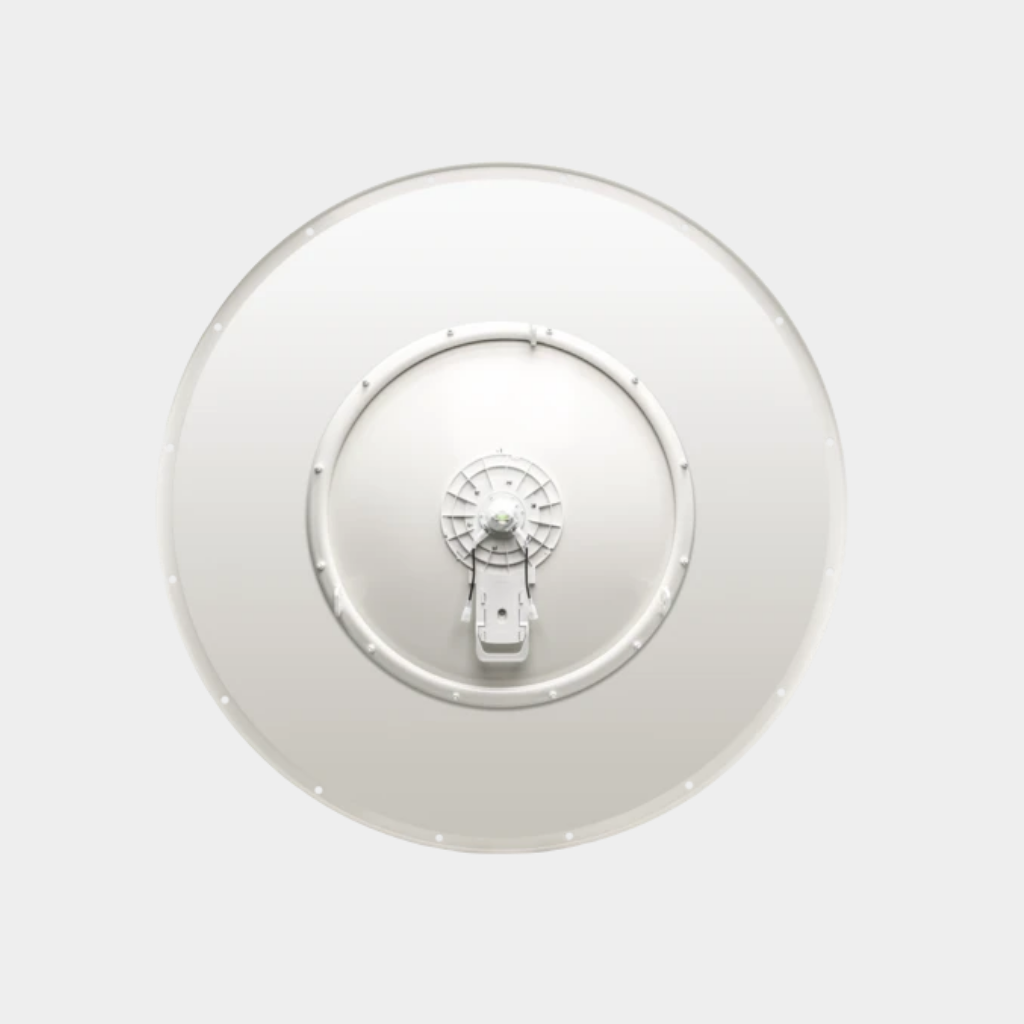

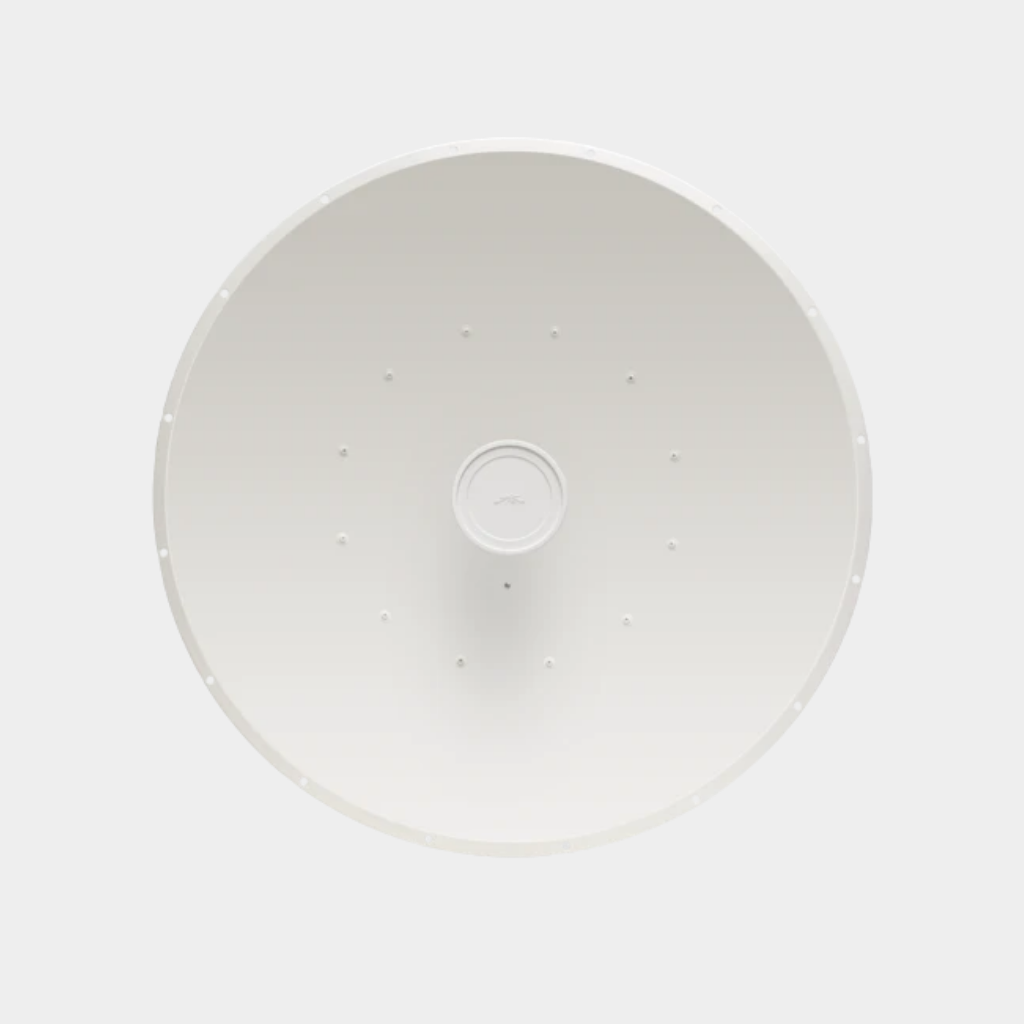

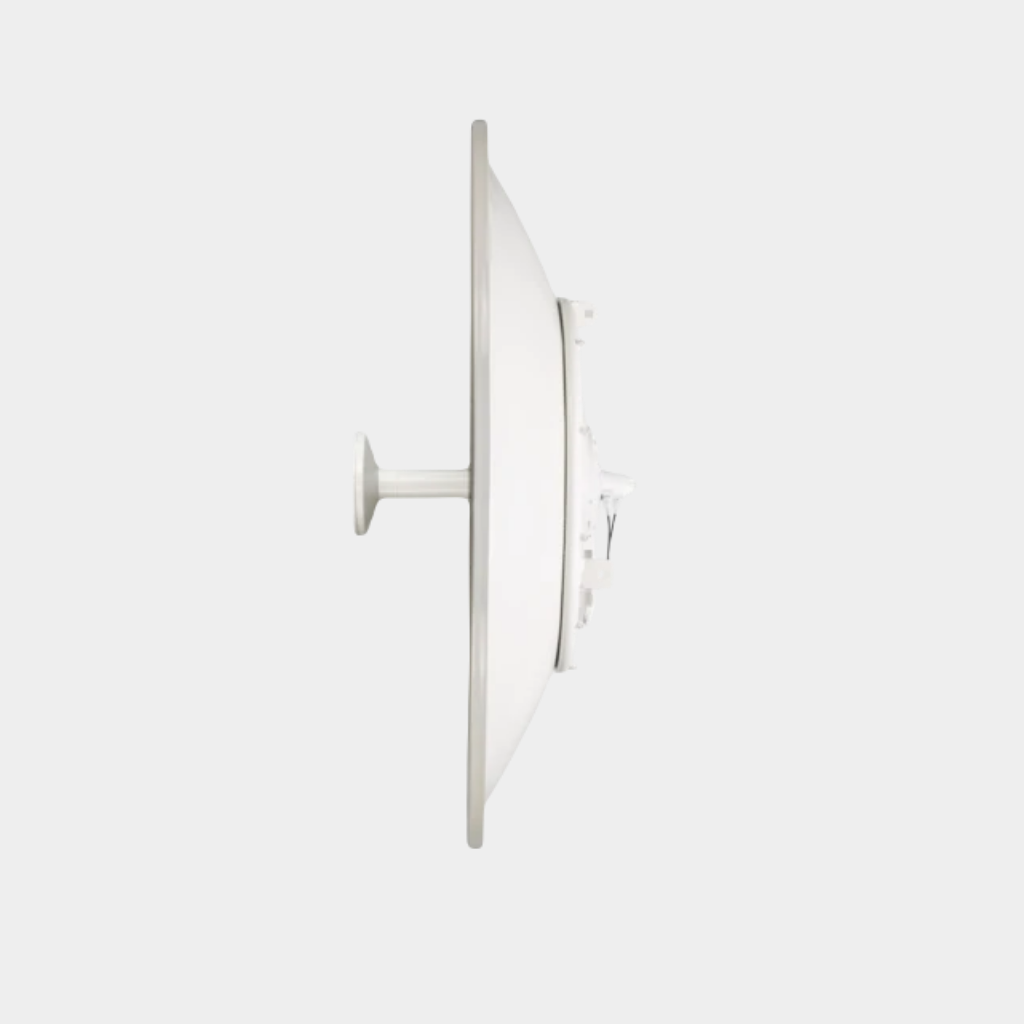

Ubiquiti AirFiber 5GHz 34dBi Slant 45 Antenna (AF-5G34-S45 I AF 5G34 S45)
Ubiquiti AirFiber 5GHz 34dBi Slant 45 Antenna (AF-5G34-S45 I AF 5G34 S45)
Ubiquiti AirFiber 5GHz 34dBi Slant 45 Antenna (AF-5G34-S45 I AF 5G34 S45)
Ubiquiti AirFiber 5GHz 34dBi Slant 45 Antenna (AF-5G34-S45 I AF 5G34 S45)
  • Load image into Gallery viewer, Ubiquiti AirFiber 5GHz 34dBi Slant 45 Antenna (AF-5G34-S45 I AF 5G34 S45)
  • Load image into Gallery viewer, Ubiquiti AirFiber 5GHz 34dBi Slant 45 Antenna (AF-5G34-S45 I AF 5G34 S45)
  • Load image into Gallery viewer, Ubiquiti AirFiber 5GHz 34dBi Slant 45 Antenna (AF-5G34-S45 I AF 5G34 S45)
  • Load image into Gallery viewer, Ubiquiti AirFiber 5GHz 34dBi Slant 45 Antenna (AF-5G34-S45 I AF 5G34 S45)

Ubiquiti AirFiber 5GHz 34dBi Slant 45 Antenna (AF-5G34-S45 I AF 5G34 S45)

Regular price
₱27,000.00
Sale price
₱27,000.00
Regular price
Sold out
Unit price
per

The airFiber® X Antennas feature significant advances in noise isolation and beam performance to complement the airFiber X radios for carrier backhauls and Point-to-Point (PtP) bridging.

SPECIFICATION:

Dimensions 1050 x 1050 x 421 mm
(41.34 x 41.34 x 16.57")
Weight 13.5 kg
(29.76 lb)
(Mount Included)
Frequency 5.1 - 5.8 GHz
Gain 34 dBi
Max. VSWR 1.4:1
Wind Survivability 200 km/h (125 mph)
Wind Loading 1,779 N @ 200 km/h
(400 lb @ 125 mph)
Polarization Dual Linear
F/B Ratio 42 dB
ETSI Specification EN 302 326 DN2
Mounting Universal Pole Mount, airFiber Radio Bracket, and Weatherproof RF Jumpers Included
